ICCONS | SKU: VDP-Q-M12

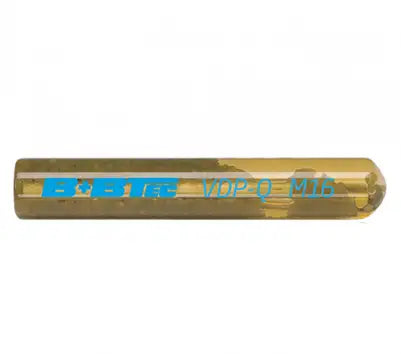

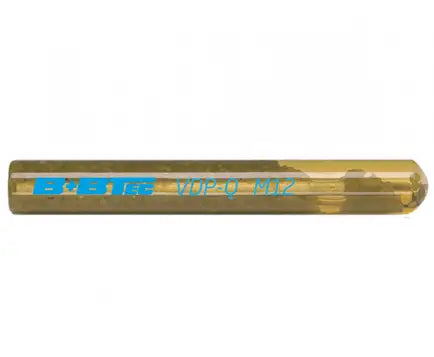

VDP Quartz Glass Capsules

$26.99

Tax included Shipping calculated at checkout.

Size

VDP Glass Capsule 12mm (10 Pack) VDP Glass Capsule 16mm (10 Pack)

Product variants

Delivery and Shipping

Shipping Targets:

North Island: 1 to 2 working days after shipping is ordered.
South Island: 2 to 4 working days after shipping is ordered.

If you have a rural RD address, you must select the rural shipping option before we can post.

Pick ups

Please allow 4 working hours after placing your order to collect.

E.g 10am orders will mostly be available to pick up after 3pm.
See our office hours for available times.
Afternoon/weekend orders will be available after 1pm on the following working day.
Please bring your confirmation email when you come to collect.

Add code FIXINZ01 at checkout for 10% off your first order!

VDP Quartz Glass Capsules

ICCONS

Product Description

When its CODE GOLD its a capsule.
ICCONS VDP-Q Capsules are the highest performing capsules available. Zero wastage, fast installation, superior overhead performance and incredible cure times for almost instant loading.

1-2-3-SAFETY
1. Volume Control: Factory pre-measured components guarantee the correct composition and volume of components. After Installation of the rod, the overflow of anchor components provides a visual confirmation of a 100% filled hole.
2. Resin Check: The transparent glass capsule allows the installer to check the quality of the resin. Usability is given when the resin runs easily inside the capsule at lukewarm temperature.
3. Auto Clean: During the installation of the anchor rod the quartz and glass components of the capsule scrape the wall of the pre-drilled hole, removing drill dust. This auto-cleaning function results in an excellent adhesion between the anchor rod and the surrounding concrete.

Features
• ETA approved Glass Capsule Anchor for Cracked and Non-Cracked Concrete
• Anchor Holes can be drilled using Rotary Drill Hammer Drills
• for Installation in Dry or Wet Holes
• for horizontal, vertical and overhead installation
• Anchor Range: M8 - M30

Usability
• In Cracked and Non-Cracked Concrete
• Overhead Installation
• Under Static Load
• Under Vibratory Load

Typical Applications
• Infrastructure Construction (Roads, Viaducts, Sound Barriers, Crash Barriers, Harbours, High Rise Construction, Steel Construction)
• Production Facilities (Crane Installation, Robot Installation etc.)
