TOGE | SKU: TSMP06050

Toge TSM Screw Bolt - Pan Head

$3.99

Tax included Shipping calculated at checkout.

Fastener Finish

Zinc Stainless Steel

Size

6mm X 50mm 6mm X 60mm 6mm X 80mm 6mm X 100mm

Product variants

Delivery and Shipping

Shipping Targets:

North Island: 1 to 2 working days after shipping is ordered.
South Island: 2 to 4 working days after shipping is ordered.

If you have a rural RD address, you must select the rural shipping option before we can post.

Pick ups

Please allow 4 working hours after placing your order to collect.

E.g 10am orders will mostly be available to pick up after 3pm.
See our office hours for available times.
Afternoon/weekend orders will be available after 1pm on the following working day.
Please bring your confirmation email when you come to collect.

Add code FIXINZ01 at checkout for 10% off your first order!

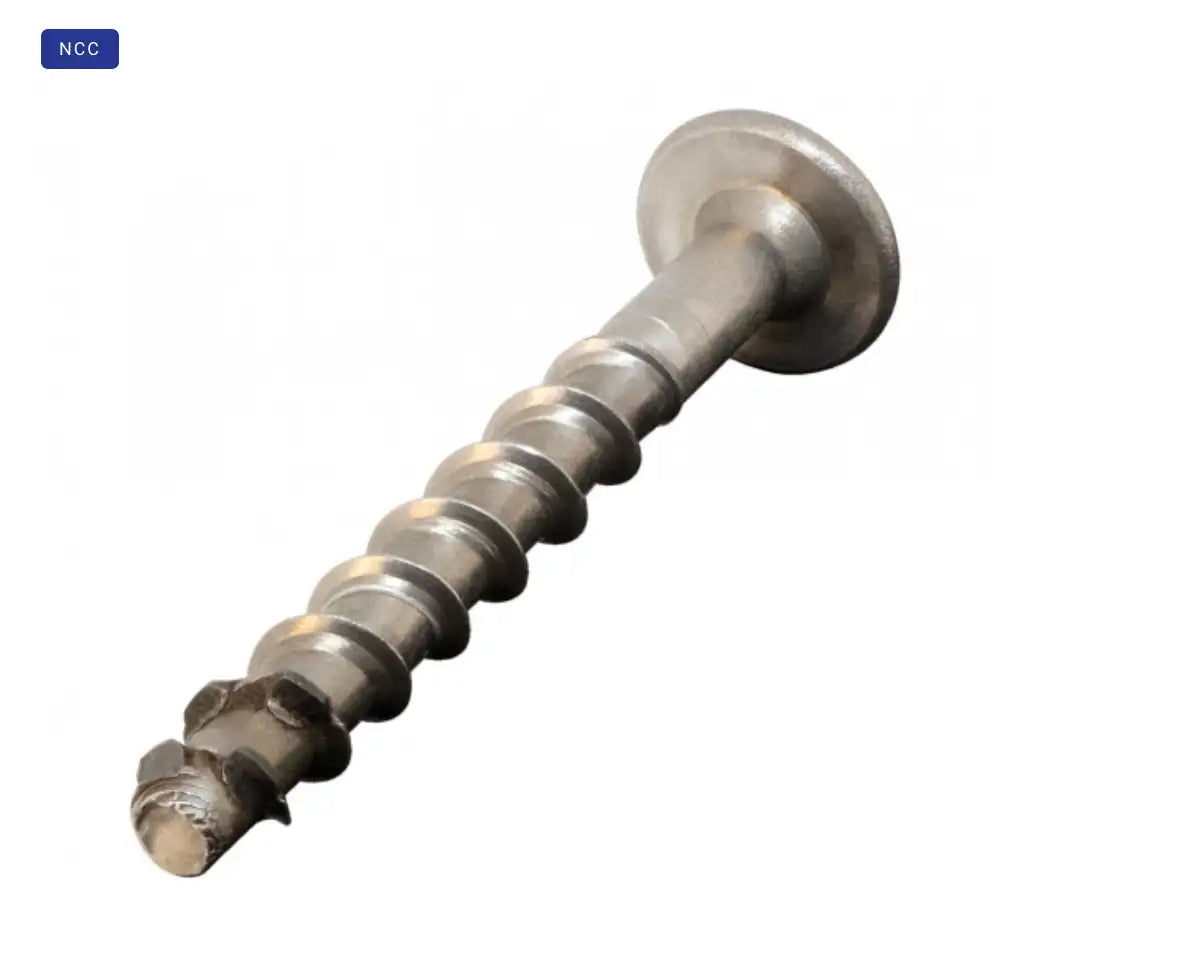

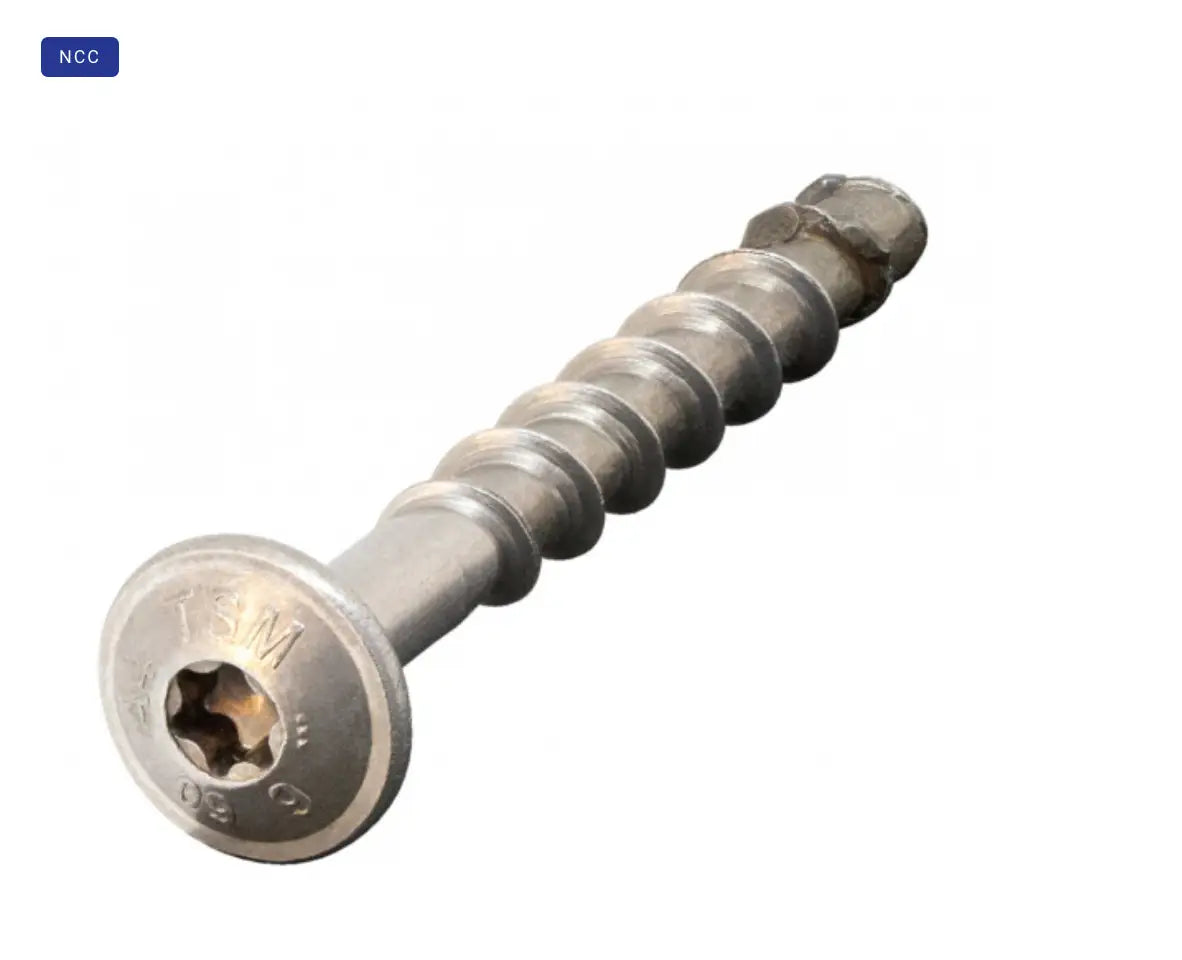

Toge TSM Screw Bolt - Pan Head

TOGE

Product Summary

Toge Dubel is one of the leading innovative screw manufacturers in the world, specialising in concrete screw anchor technology. Screw anchors give a positive connection that is free of expansion pressure in most base materials lending them great close-to-edge fixing characteristics. Toge screw-bolts have endured the highest level of product assessments that equips them with fire ratings, seismic approval C1 (6mm to 14mm diameter), C2 approval (8mm to 14mm in zinc only), cracked concrete approvals and Australian Standard Compliance (AS5216:2021 Design of post-installed and cast-in fastenings in concrete).

The Toge TSM range features quick and safe installation, high load capacities in both cracked and non-cracked concrete with undercut load transmission. The TSM can be easily removed and does not leave residue or metal components in the drilled hole that can cause corrosion. Loads can be achieved immediately upon installation. Available in zinc and stainless steel, various head styles and configurations.

Features
• National Code Compliant (NCC)
• ETA Approved
• Cracked Concrete Approval
• Seismic C1 approval (sizes 6mm-14mm)
• Seismic C2 approval (sizes 8mm-14mm in zinc only)
• Fire Rated
• CE Certification
• High load performance
• Suitable for overhead applications
• Removable
• Available in Hex, countersunk and pan head variations
• Available in Zinc clear and 316 stainless steel variants
• Ideal for close-to-edge applications due to minimal expansion force

Applications
• Structural fixings in cracked and uncracked concrete
• Tunnel fit out
• Cable tray support systems
• Seismic bracing of MEP systems
• Fastening steel strut channel and support straps for MEP
• Facade structures
• Guard rails
• Bollards and protective barriers
• Machinery and plant equipment
• Stadium and theatre seating
• Acoustic barriers
• balustrades and hand rails
• Scaffolding ties
• Formwork
• Plumbing and fire services
• Steel frame construction
• Timber frame construction
• Glazing, windows and storefronts
• Racking and shelving
• Fixings wood structures in concrete
